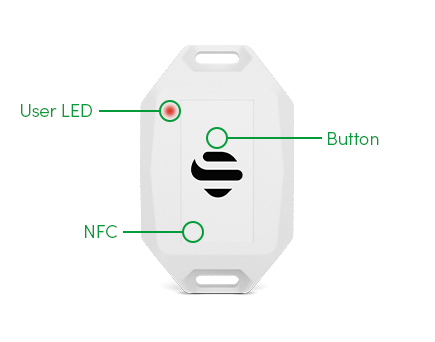

Tag Leonardo Asset Slim
Overview
Decawave UWB Radio, True Location
Bluetooth Low Energy, BLE
Near Field Communication, NFC
Configurable via web browser and RTLS Studio
Powered from 1000 mAh CR2477 battery (included)
Tag Leonardo is an active mobile locator providing superior accuracy in real-time. Its position could be reported from milliseconds to minutes covering broad spectrum of applications from industrial projects to livestock. Battery lifetime goes up to years.
Feature Set
| Feature | Description |
|---|---|
POSITIONING | 🎯 Accurate positioning based on integrated UWB radio. Tag emits UWB blinks and RTLS provides precise True Location via API. |
MOTION DETECTOIN | 🔋 Motion detection unit enables to save energy. The tag may transmit only during the movement. |
FIRMWARE UPDATE | 📥 Bluetooth interface is used for wireless firmware update. |
CONFIGURATION | 🔧 Tag Leonardo Asset is configured wirelessly through RTLS Studio or via Android device through NFC interface. NFC: Provides zero-spend energy reconfiguration. Tag Leonardo Asset might be reconfigured even without battery. |
Switch On the Tag
Tag is initialized after it is turned on by holding the button for two seconds. For more info about the button functionality please continue here.
After the initialization phase, the tag sends location blink message periodically with given refresh rate. For time between position updates, the Tag goes into sleep modes. There are several sleep modes available suitable for different use-cases, please read more information here.
The blink message is received by set of Anchors and it is forwarded to RTLS Studio via Ethernet or WiFi backhaul, where position is calculated. The blink message can be optionally equipped with sensor data. All the data is further disseminated trough the API. First steps with Sewio Real Time Location System are described here.
Tag Battery Lifetime
To read more about Tag's battery see section Tag Battery.
Also, see section about Charging and Storage Tag recommendation.
Number of Tags within RTLS System
Please read following section.
RF Profile
Please read following section.
Technical Parameters
Size | 41 x 70 x 16.5 |
Weight | 38 g |
Power Supply | Coin Battery CR2477, 1000 mAh |
Operating Conditions | -20 ~ 60 °C 20 ~ 85% humidity without condensation |
Warm-up Time | Immediate |
| Absolute Maximum Refresh Rate | 50ms / 20Hz |
Environment | Industrial Warehouse Manufacturing Retail |
UWB, Channel 5 | 6500 MHz / -41.3dBm |
Bluetooth Low Energy | 2400 MHz |
| Enclosure | IP65 |
| Enclosure Material | ABS |
| Approvals | RED/CE FCC |
| Button | Yes |
| LED | Yes |
Part Number
| PN | Name |
|---|---|
| SWT04-06-00 | Tag Leonardo Asset Slim |
| SWT04-00-00 | Tag Leonardo Asset OEM |
OEM partnumbers does not include enclosures and are delivered in ESD bag. Please read Tag Leonardo OEM Terms of Use.
⚠️ Safety and Proper Handling
- Do not use deformed or damaged product or battery.
- Do not modify the product.
- Protect the product from excessive moisture.
- Do not use the product if liquid has entered the enclosure.
- Protect the product from excessive heat.
- Do not expose the product to excessive pressure.
