Device Mounting - Vista Omni

Anchor Vista Omni is suitable for  Industrial environment as well as for office environment. Therefore, Sewio delivers two types solution:

  • Vista Omni : Anchor + QuickMount + Cable Gland
  • Vista Omni Compact: Anchor + WallMount (or Tripod + Tripod Adapter)





Vista Omni assembly guide:

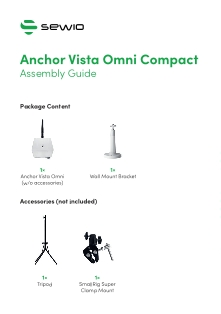

Vista Omni Compact assembly guide:


The difference between Anchor Vista Omni and Anchor Vista Omni Compact is only in accessories included in the package. For more details see Package Contains and Accessories - Vista Omni.


Anchor Vista Omni is typically deployed at the height of 3 - 6 meters above the floor.

Recommended mounting is with Mikrotik quickMOUNT PRO LHG. Antenna should be in straight position in order to get maximum possible performance.


Optionally, together with Mikrotik quickMOUNT PRO LHG use universal antenna mount. For more details see Accessories.


Anchor Vista Omni Compact is typically deployed at the height of 3 - 6 meters above the floor.

Recommended mounting with WallMount Bracket. Antenna should be in straight position in order to get maximum possible performance.


Optionally, you can



More details about Anchor Vista Omni Rules you can find in section Anchor Deployment.



Holders PN

namePN
quickMOUNT PRO LHGSWC11-00-00

Holders PN

namePN

Wall Mount Bracket

SWC02-00-00




quickMOUNT PRO LHG

Sewio provides quickMOUNT PRO LHG holder with Anchor Vista Omni.

Its dimensions as below:

WallMount Bracket

Sewio provides mounting bracket with Anchor Vista Omni Compact

Its dimensions as below:


In past, we changed a vendor and may occur that your mounting bracket is slightly different.
