Device mounting & Power Supply

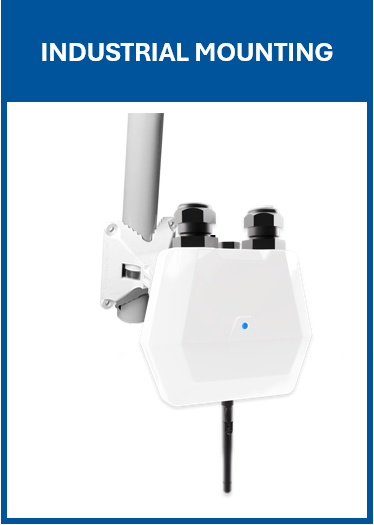

Anchor Zevon Omni is suitable primarily for Industrial environment. Therefore, Sewio advices to mount the anchor:

• Zevon Omni : Anchor + QuickMount + Cable Gland (+ antenna mount - not included in the package)

• 2D LOCALIZATION
  • Always point the antenna downwards
  • Always mount the anchor in a vertical position
  • Make sure, that the anchor is always pointing straight

Holders PN

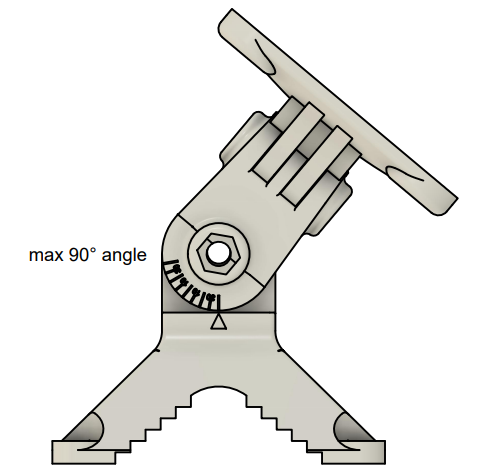

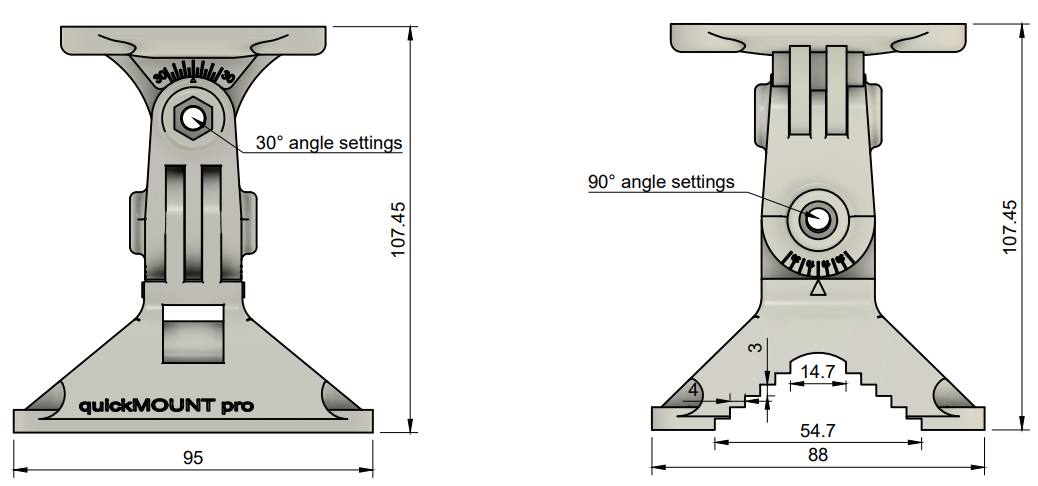

quickMOUNT PRO LHG

Sewio provides quickMOUNT PRO LHG holder with Anchor Zevon Omni - this mount comes as a standard and is included with each anchor.

 Power Over Ethernet (Active PoE) and daisy chaining

Anchor Zevon Omni supports IEEE 802.3at/bt Power over Ethernet (PoE) for both power delivery and communication with the RTLS Server.

After connecting the anchor to a PoE power source:

1. The Status LED blinks blue several times during startup.

2. Once initialization is complete, the LED turns off, indicating normal operation.

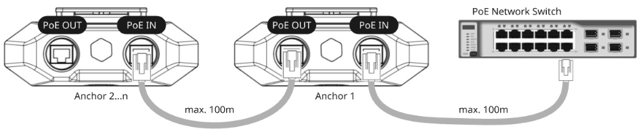

Daisy-Chain Support

Anchor Zevon Omni supports PoE daisy chaining, allowing multiple anchors to share a single Ethernet cable run.

• Up to five (5) Zevon anchors can be connected in a single daisy-chain configuration.

• Only Zevon platform anchors should be connected to the PoE OUT port.

• Ensure the PoE source provides sufficient power for all connected devices.
