Anchor Zevon Omni
Feature Set
DESIGN
- Robust IP65 enclosure
- Protective vent for harsh environments
- Wide operating temperature range (-30°C to 60°C)
DEPLOYMENT
- Supports mixed deployments with Zevon Direct anchors.
- Daisy-chain PoE
- Reduces cabling and installation materials
RADIO
- IEEE 802.15.4z
- Global regulatory support for 8 GHz UWB
- High UWB Coverage
👉🏿 Compatibility
Anchor Zevon Omni requires RTLS Studio 3.6 or later. Earlier versions do not support Zevon platform anchors discovery and configuration.

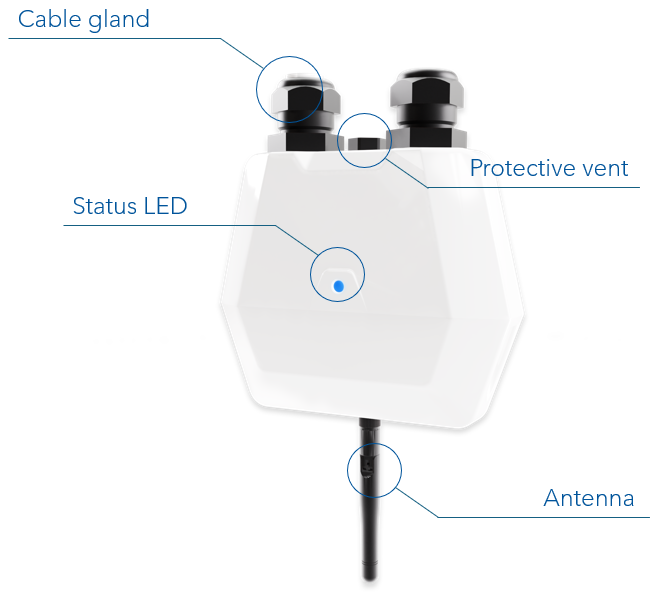

Anchor Zevon Omni is an industrial Ultra-Wideband (UWB) anchor used in RTLS deployments. It receives UWB ranging measurements from tags and forwards them to RTLS Studio, where tag positions are calculated.
They are typically mounted above tracked assets or personnel to maximize coverage and minimizes line-of-sight obstructions.
MECHANICAL | |
Size | 234 x 145 x 58 |
Weight | 294g |
IP Rating | IP65 |
Mounting | Wall / Ceiling / Rod |
ELECTRICAL | |
Power Requirements | PoE IN 802.3at/bt **Only Zevon platform anchors should be connected to PoE OUT |
Power consumption | Typical power consumption: 2.5W (excluding PoE OUT) |
Network Connection | Ethernet 10 / 100 Mbit/s |
ENVIRONMENTAL | |
Operating Temperatures | from - 30°C (-22°F) to 60 °C (140°F ) |
| Operating Humidity | 20 – 85% relative humidity, non-condensing |
Environment | Industrial Warehouse & Manufacturing Automotive |
| RADIO & COMPLIANCE | |
| UWB Standard | IEEE 802.15.4z |
| UWB Radiated Power | 7737.6 - 8236.8MHz -UWB Channel 9 -41.3 dBm/MHz |
UWB Antenna | Omni Directional |
BLE | 2.4 GHz with Integrated antenna |
| Conformity | EU - US - Canada |
